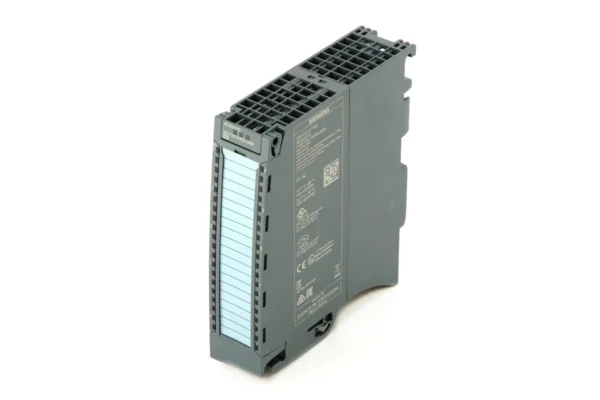

The Siemens 6ES7532-5HF00-0AB0 is an analog output module designed for the SIMATIC S7-1500 series. With eight channels grouped together, this module delivers output with a 16-bit resolution and an accuracy of 0.3%. The 6ES7532-5HF00-0AB0 supports a rapid oversampling rate of 0.125 ms for all eight channels, making it suitable for applications that require precise and fast analog signal output. Safety features include support for safety-oriented shutdown of load groups up to SILCL2 in accordance with EN 62061:2005 + A2:2015 and Category 3 / PL d as outlined in EN ISO 13849-1:2015. The 6ES7532-5HF00-0AB0 is delivered with an infeed element, shield bracket, and shield terminal; please note that the front connector (available in screw terminal or push-in versions) must be ordered separately.
Specifications:
Manufacturer: Siemens
Range: Simatic S7
Subrange: S7-1500
Type of product: Digital modules
Product phase: Active
Analogue outputs: 8
Dimensions (cm): 19,4 x 16,1 x 4,7
Weight: 0.42kg
Commodity Code: 85389091
Export Control Regulations (ECCN): 9N9999
EAN: 4025515080176
