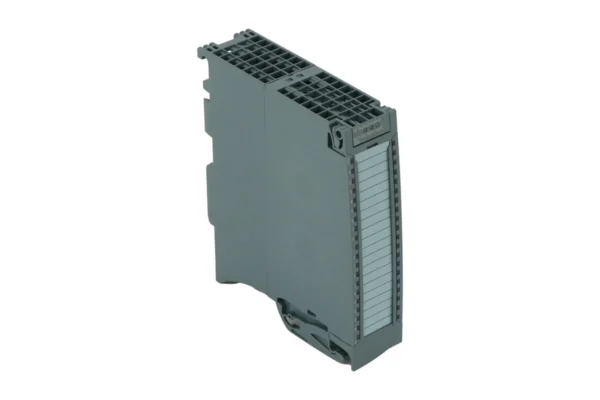

The Siemens 6ES7522-1BH01-0AB0 digital output module is designed for use with the SIMATIC S7-1500 series, offering precise and reliable control in industrial automation environments. This module provides 16 digital output channels (24 V DC, 0.5A) organized in two groups of 8, with a maximum load of 4 A per group. Each channel features single-channel diagnostics and a switching cycle counter, allowing for detailed monitoring and maintenance of connected actuators. The 6ES7522-1BH01-0AB0 supports safety-oriented shutdown of load groups up to SILCL2 according to EN 62061:2005 + A2:2015 and Category 3 / PL d in line with EN ISO 13849-1:2015, ensuring compliance with demanding safety standards. A front connector (screw terminals or push-in) must be ordered separately for installation.
Specifications:
Manufacturer: Siemens
Range: Simatic S7
Subrange: S7-1500
Type of product: Digital modules
Supply voltage: 20,4-28,8V DC
Product phase: Active
Supply voltage: 20,4-28,8V DC
Digital outputs: 16
Dimensions (cm): 15,4 x 15,00 x 4,7
Weight: 0.28kg
Commodity Code: 85389091
Export Control Regulations (ECCN): 9N9999
EAN: 4047623405931
