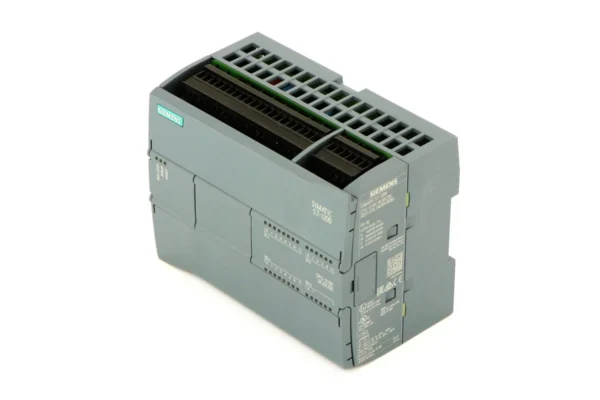

The Siemens 6ES7215-1AG40-0XB0 is a compact and reliable CPU from the SIMATIC S7-1200 series, specifically designed to support demanding industrial automation tasks. This model features two PROFINET ports, providing seamless integration into existing networks and efficient communication across the production line. The onboard I/O configuration includes 14 digital inputs (24 V DC), 10 digital outputs (24 V DC, 0.5A), 2 analog inputs (0–10 V DC), and 2 analog outputs (0–20 mA DC), making it suitable for a wide range of control applications. The device operates with a DC power supply ranging from 20.4 to 28.8 V DC and offers a program/data memory capacity of 125 KB, allowing for flexible programming and data handling.
Specifications:
Manufacturer: Siemens
Range: Simatic S7
Subrange: S7-1200
Type of product: Controllers
Supply voltage: 20,4-28,8V DC
Product phase: Active
Supply voltage: 20,4-28,8V DC
Analogue inputs: 2
Analogue outputs: 2
Digital inputs: 14
Digital outputs: 10
Model: Compact
Dimensions (cm): 14,00 x 11,1 x 8,5
Weight: 0.41kg
Commodity Code: 85371091
Export Control Regulations (ECCN): 9N9999
EAN: 4047623402756
